RAILROAD SIGNALS of the U.S.



SOUTHERN PACIFIC RR
SIGNAL ASPECTS 1998
From Southern Pacific Lines Timetable #1, dated April 14, 1998.


RAILFAN GUIDES HOME
RAILROAD SIGNALS HOME

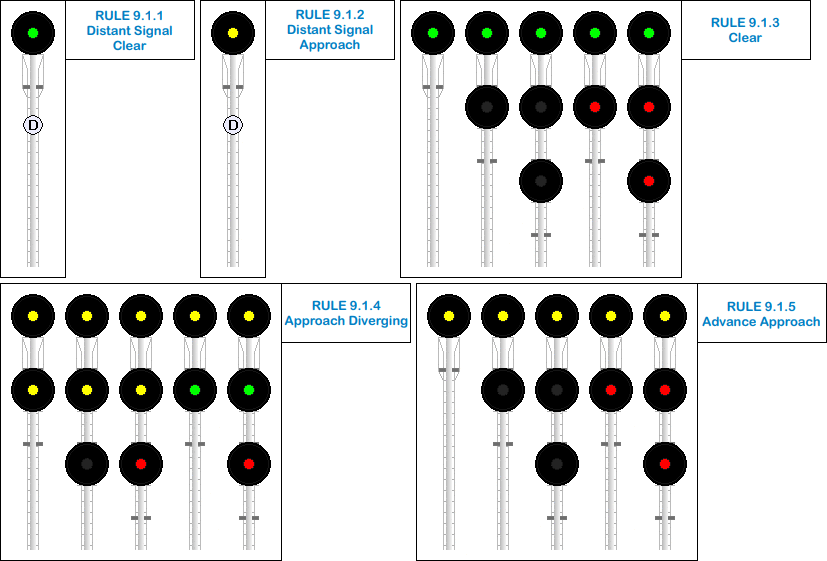

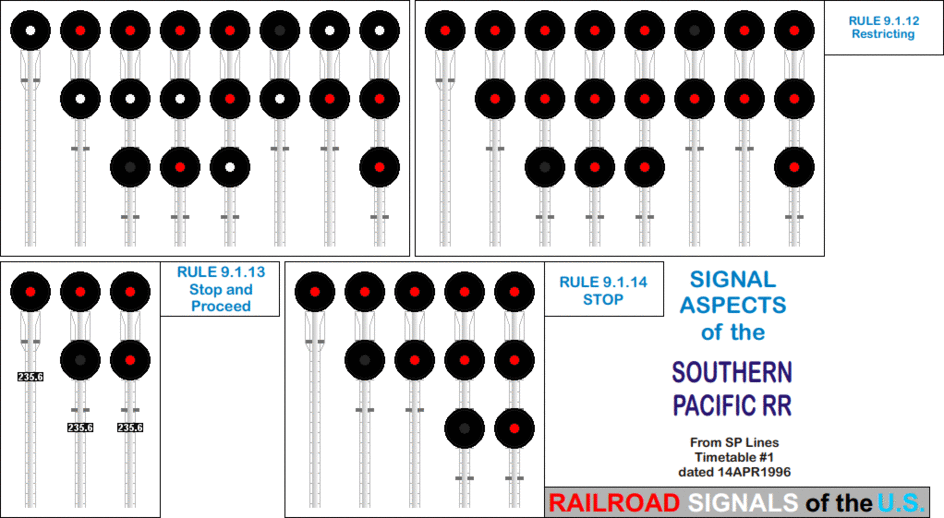

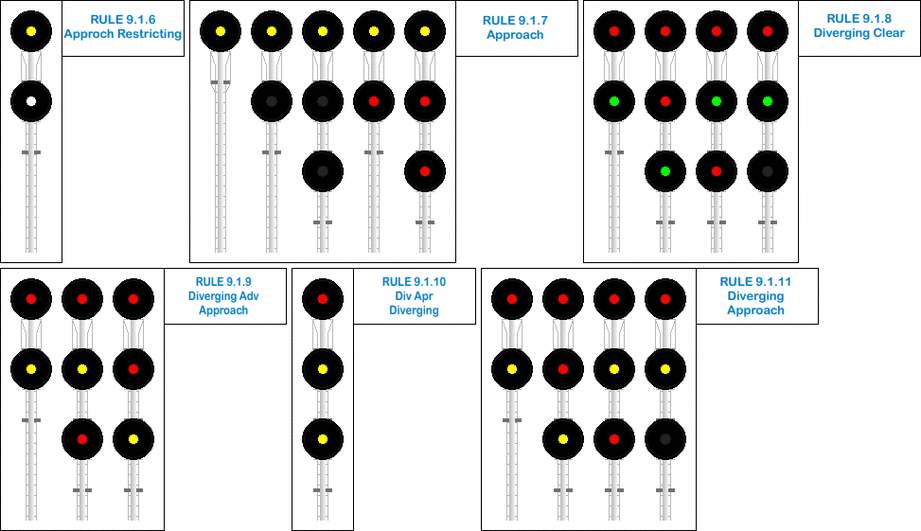

This chart shows what happens when a railroad inherits a bunch of railroads into it's system, and has to deal with the many, many different signal aspects of the former roads.  One look at the aspects for the restricting rule 9.1.12 illustrates what I'm talking about!


Click here for the PDF version.








New 15MAY2007, 09NOV2016
Last Updated: 08/13/2019
