The following drawings are from a 1911 US&S Automatic catalogue.
This catalog was in the standard book type format, just before they went to a multi-section, multi-book replaceable page format.


A model "S" semaphore mounted atop equipment cabinets.

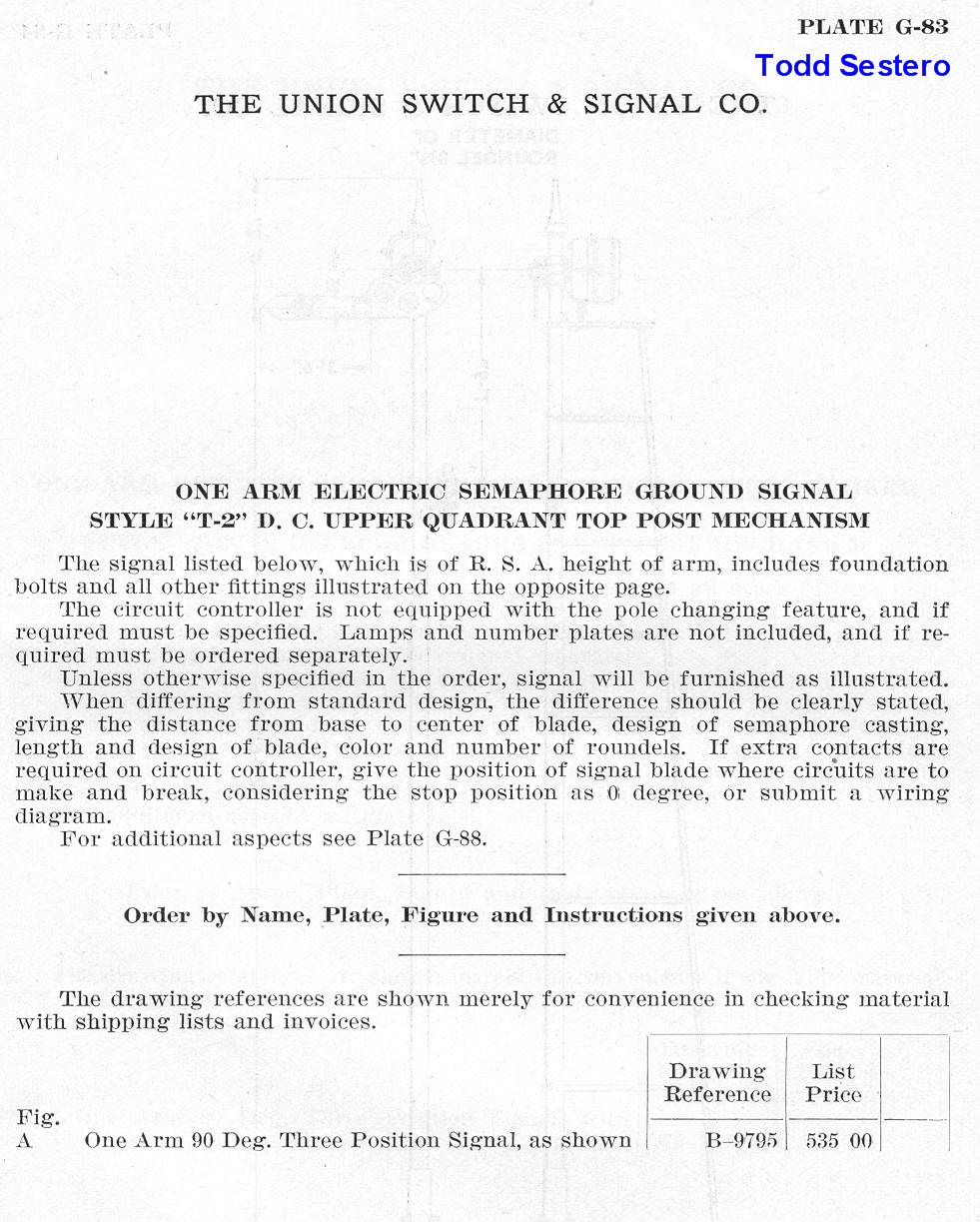

A model "T-2" semaphore, pole mounted.

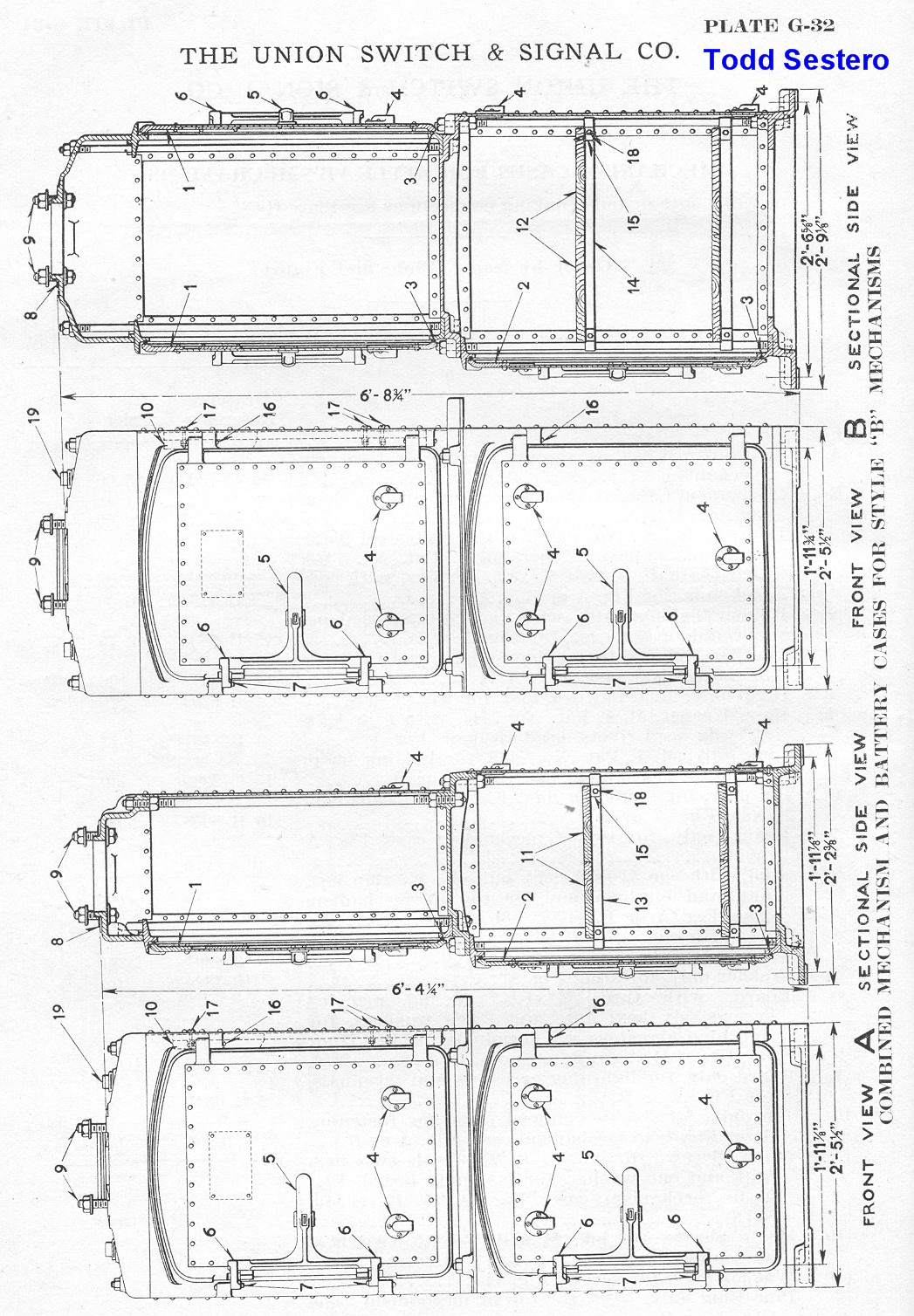

The two styles of equipment cases, one for relays only, the other for relays and batteries.







Various combinations with height measurements.

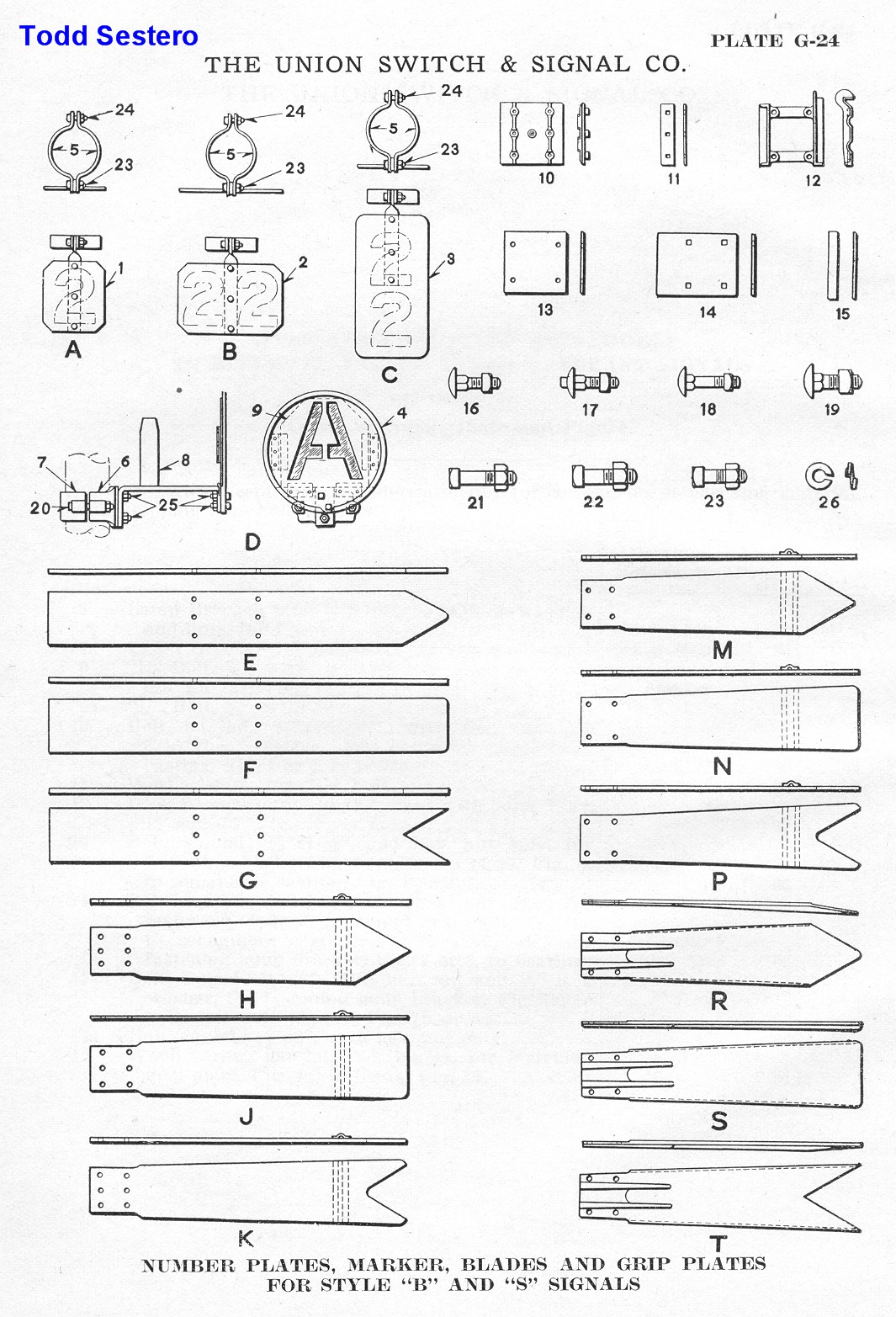

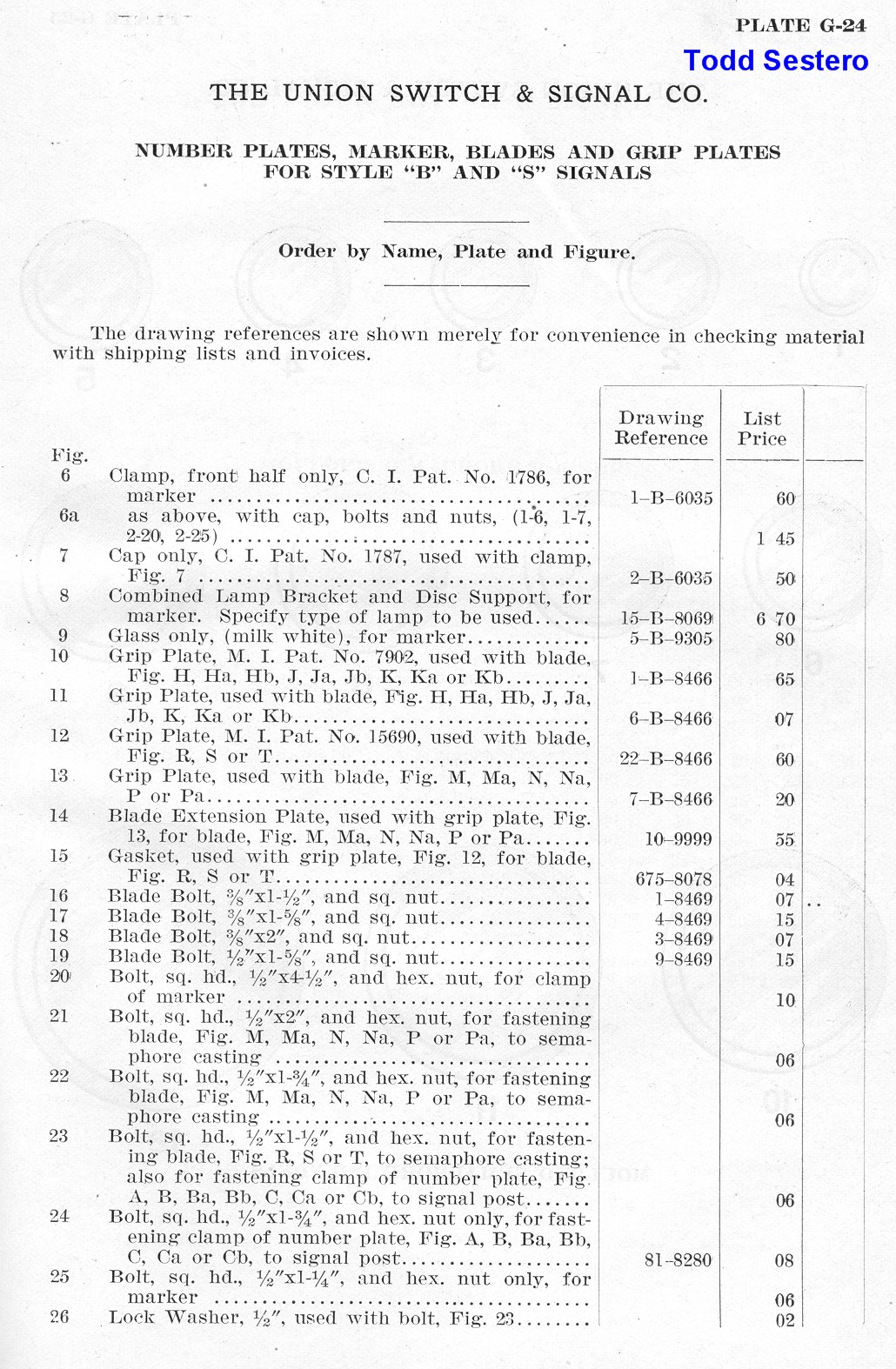

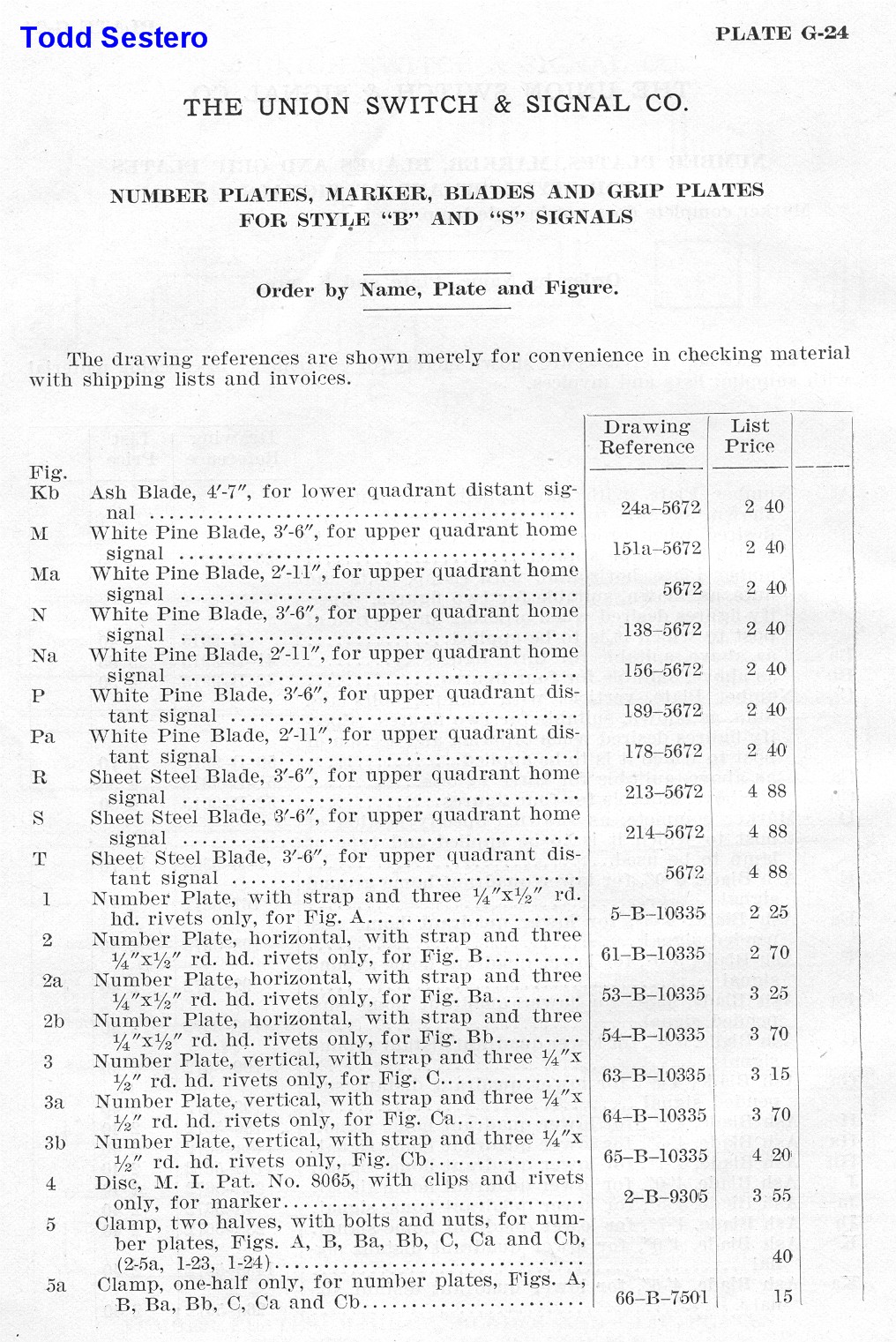

Blade information.

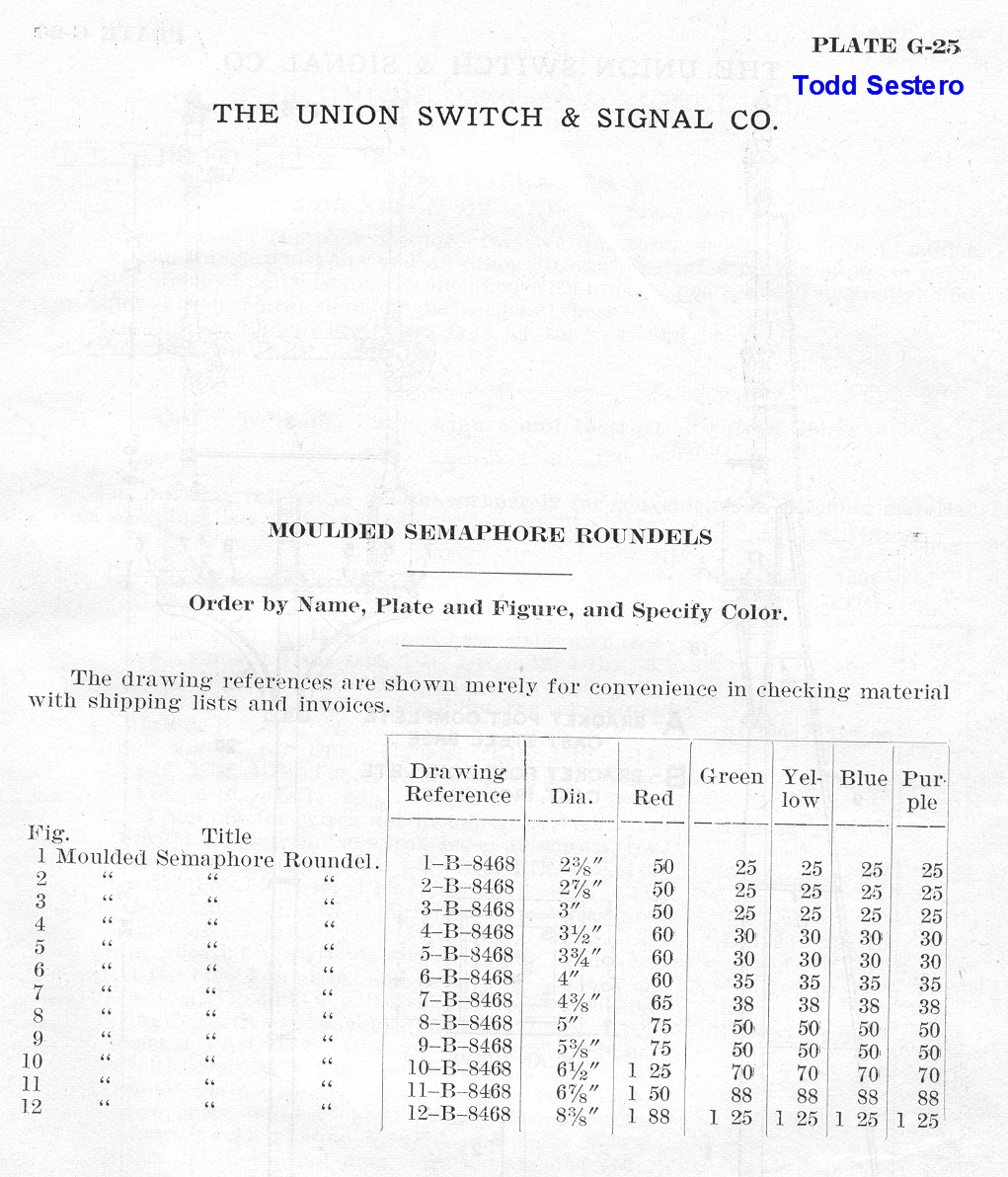

Roundel information.
