RAILROAD SIGNALS of the U.S.

NSW - NEW SOUTH WALES RAILWAYS
SIGNAL ASPECTS



RAILFAN GUIDES HOME
RAILROAD SIGNALS HOME

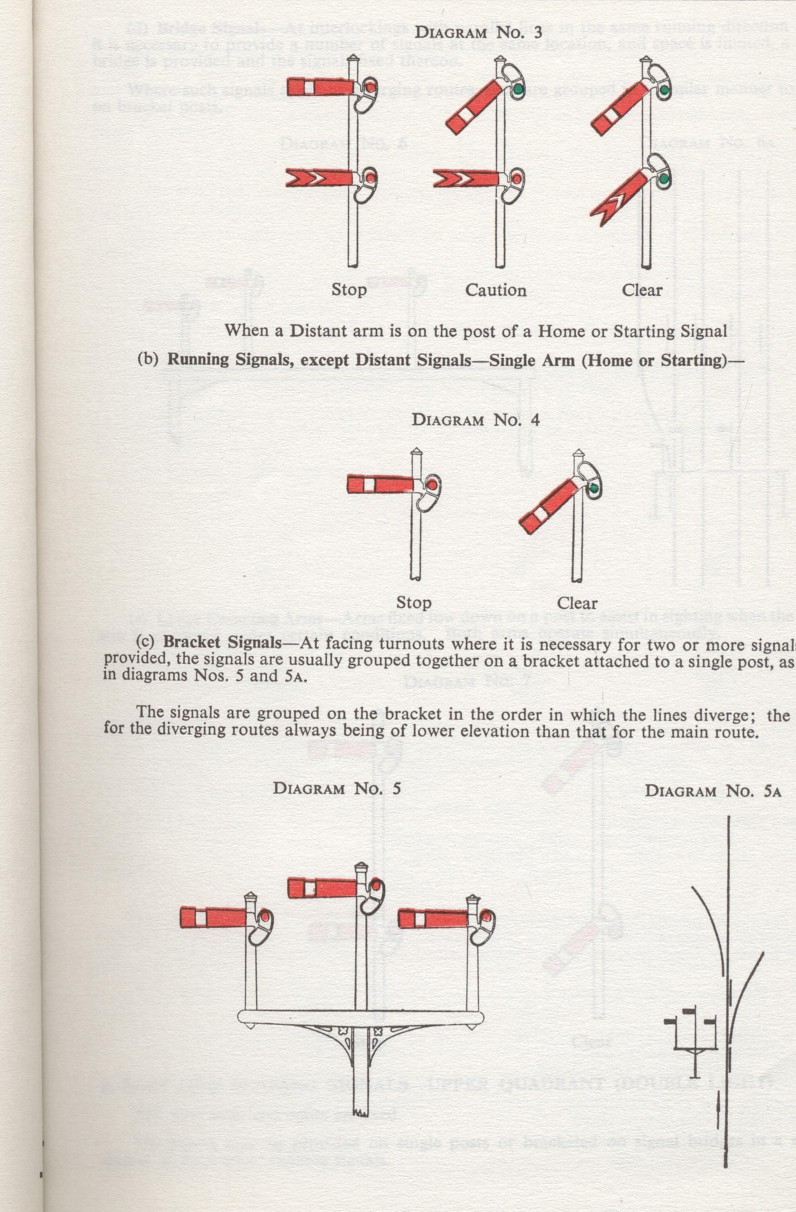

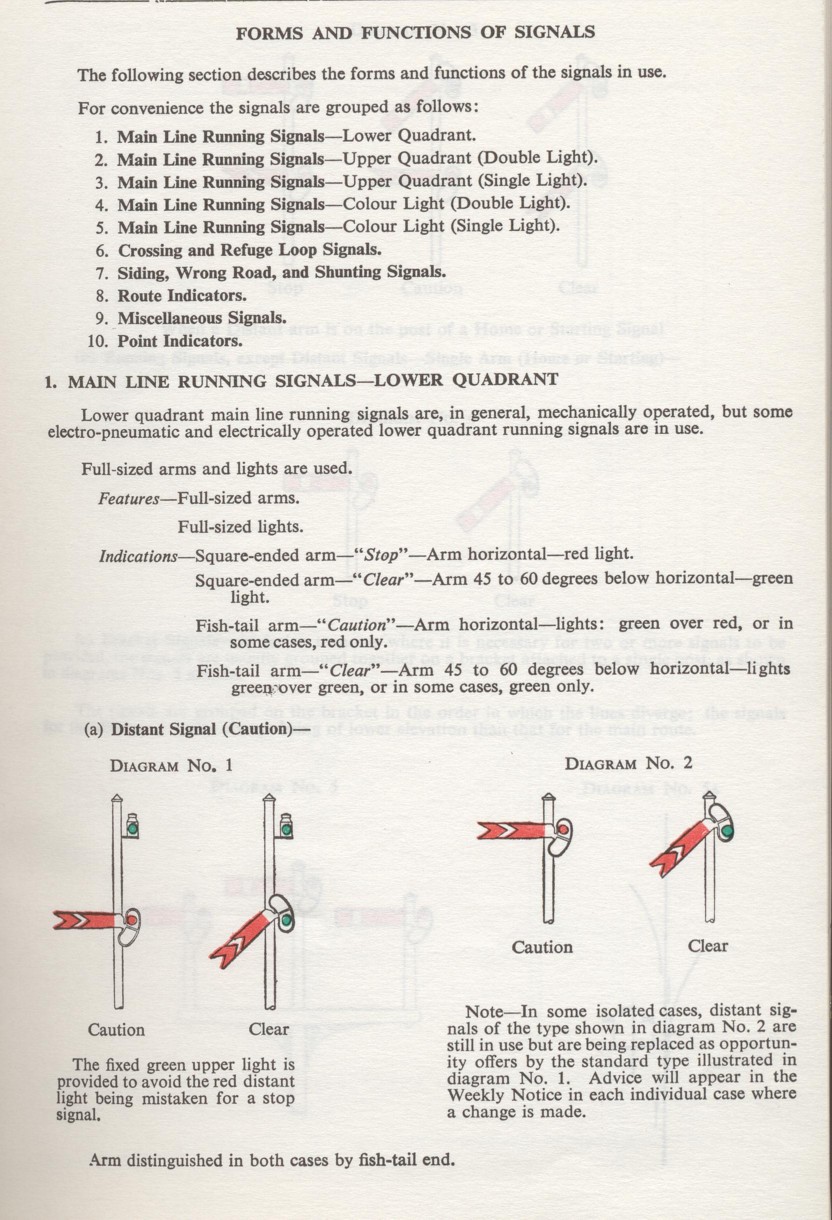

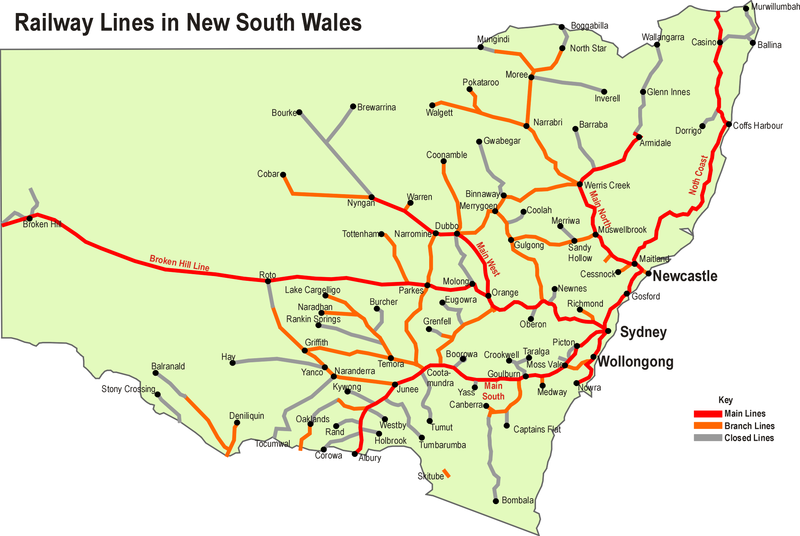

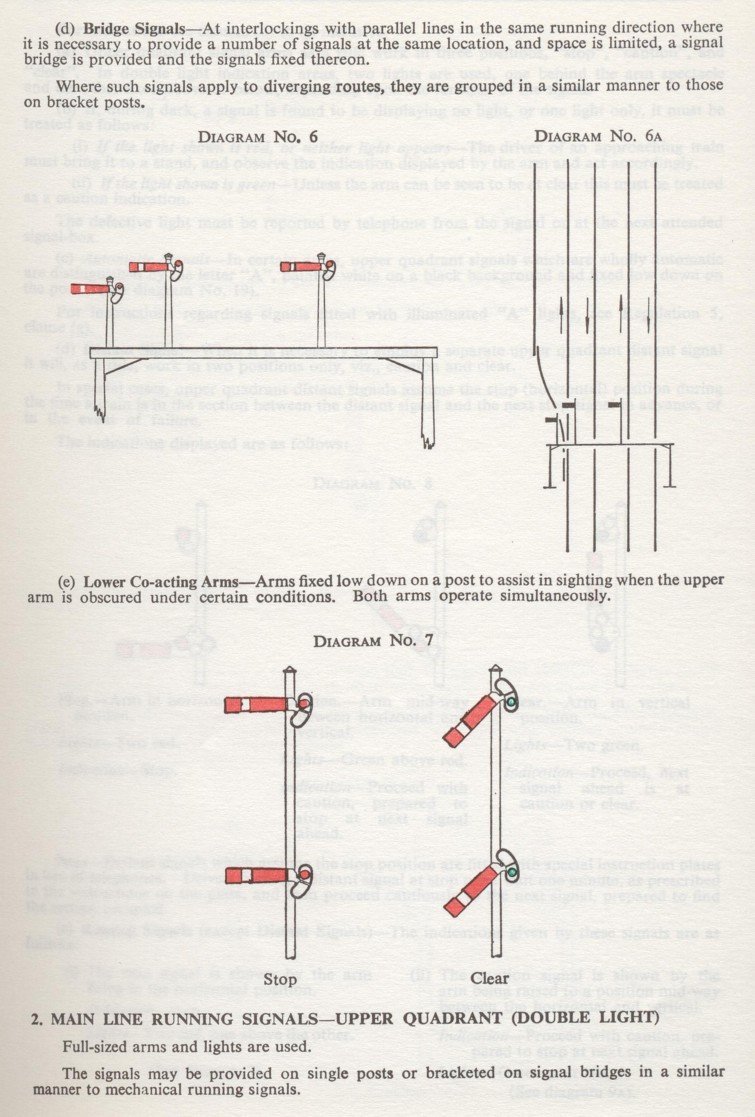

Another series of scans from the Yahoo Railway Signaling group in the files section.  Since the railroad was called what it is at the top of the page, it was the New South Wales Government Railways and is now the Rail Corporation New South Wales.  The map below is from Wikipedia's webpage on the NSW.

New 28MAY2012....
Last Updated: 11/09/2016
