RAILROAD SIGNALS of the U.S.

SIGNAL ASPECTS of the
B&O RAILROAD

from C&O/B&O Rulebook Dated April 27, 1969



RAILFAN GUIDES HOME
RAILROAD SIGNALS HOME


Both rulebooks below are divided into two signal sections.  The first section deals with signals found on the old C&O divisions, and the second section covers signals on the B&O divisions.

The C&O section rules, although dated 1969, are the same as the rules from the 1958 C&O rulebook I have here

The B&O rules were re-numbered to begin with a "B", such as B-281.

Does anyone have a rulebook from the earlier years, say the 20's or 30's, that they would like to share?

All of the pictures below are available here as a PDF (~4megs).





Rule B-224  - Train Order Signals

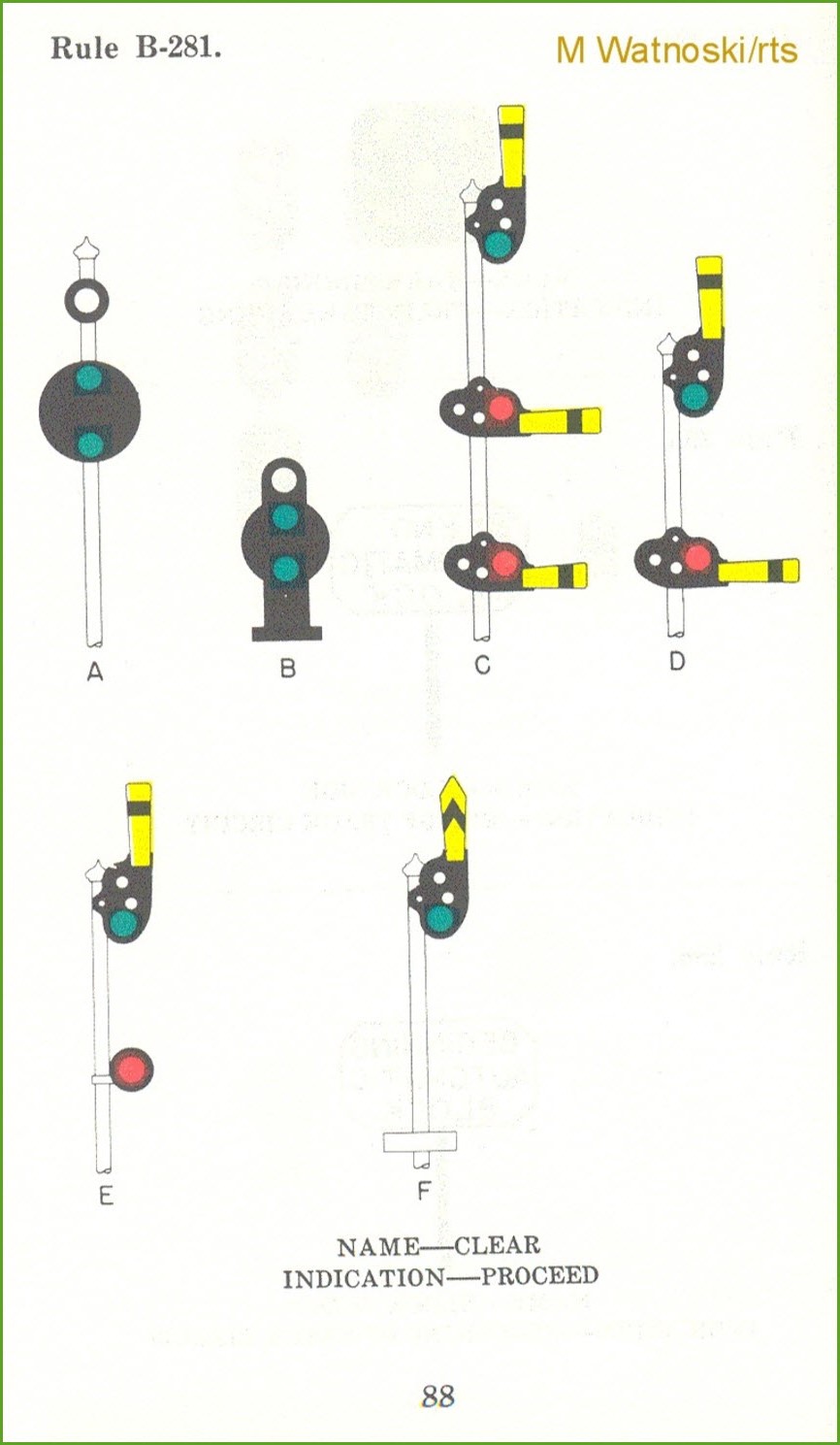

Rule B-281  - Clear


Rule B-282  - Approach Limited
Rule B-282-A - Approach Medium



Rule B-283 - Limited Clear
Rule B-283-A - Medium Clear

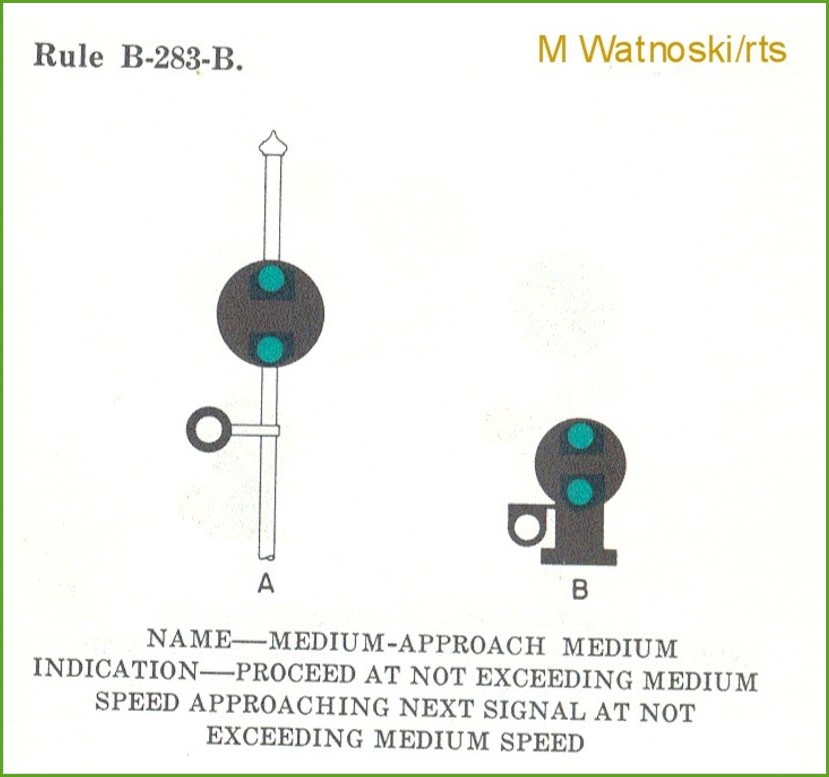

Rule B-283-B - Medium-Approach Medium

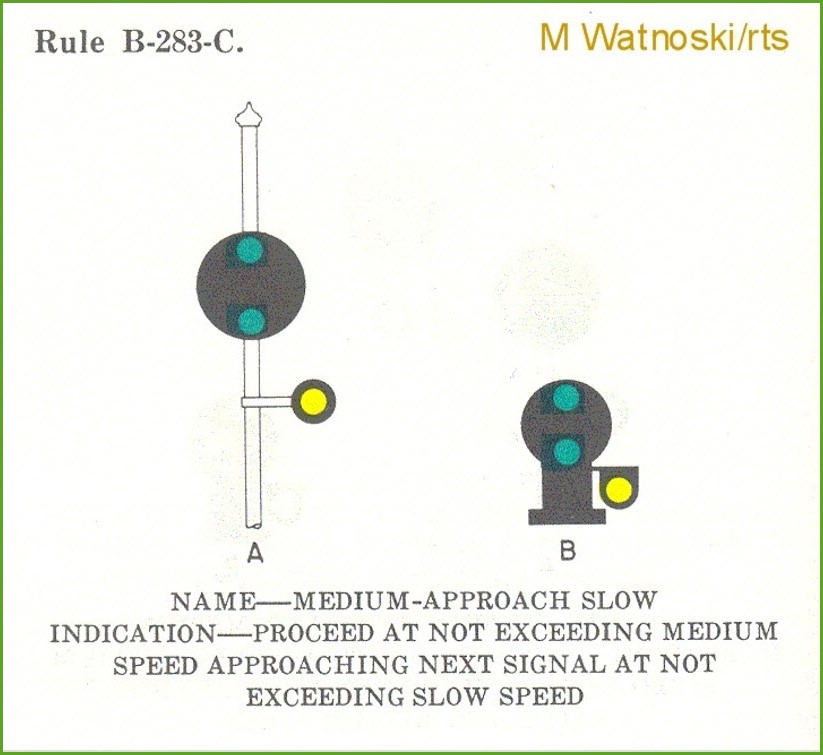

Rule B-283-C - Medium-Approach Slow

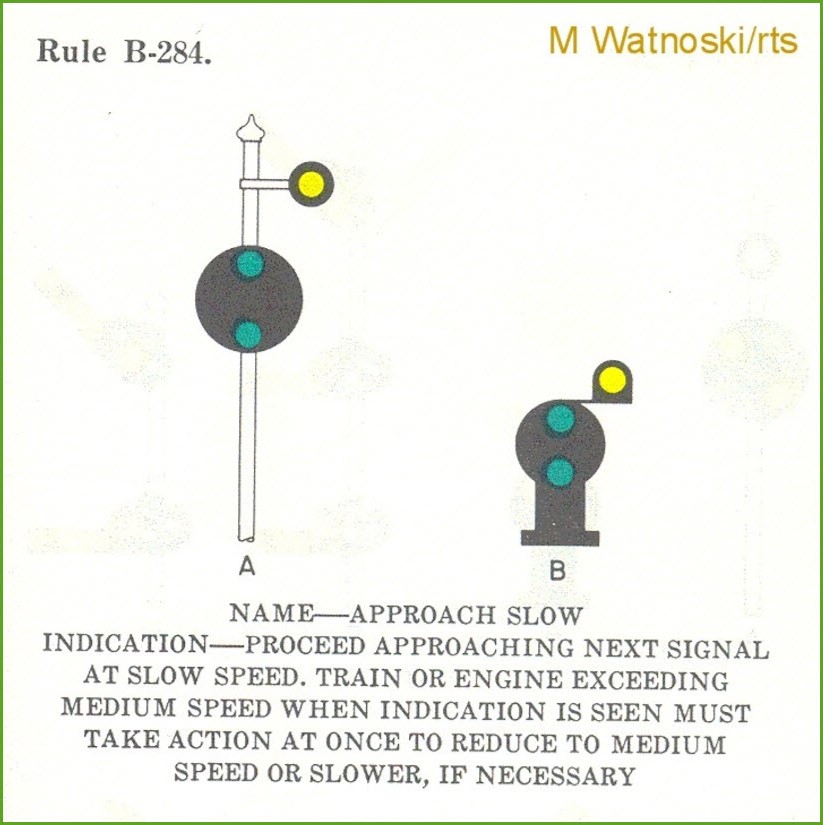

Rule B-284  - Approach Slow

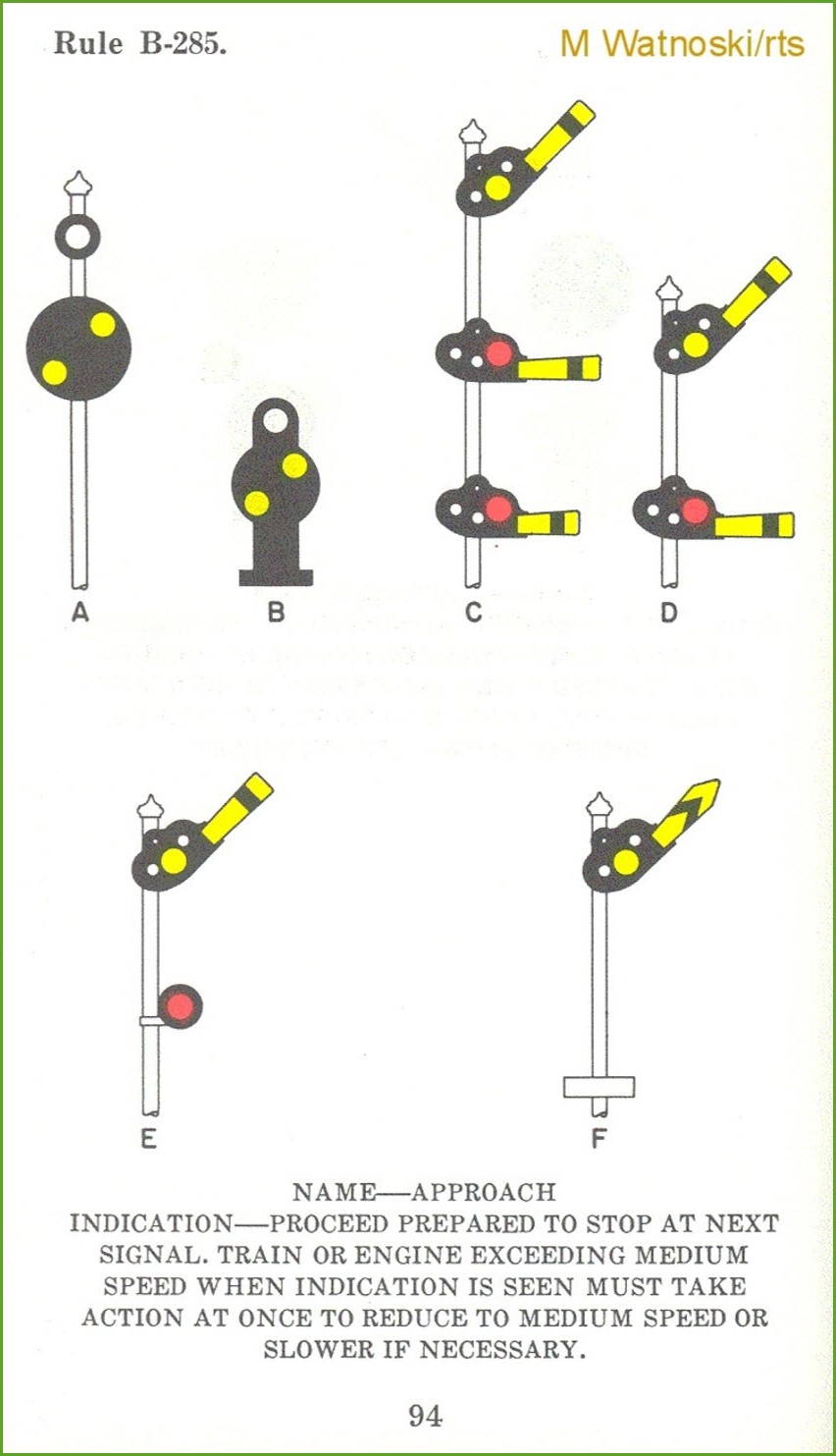

Rule B-285 - Approach

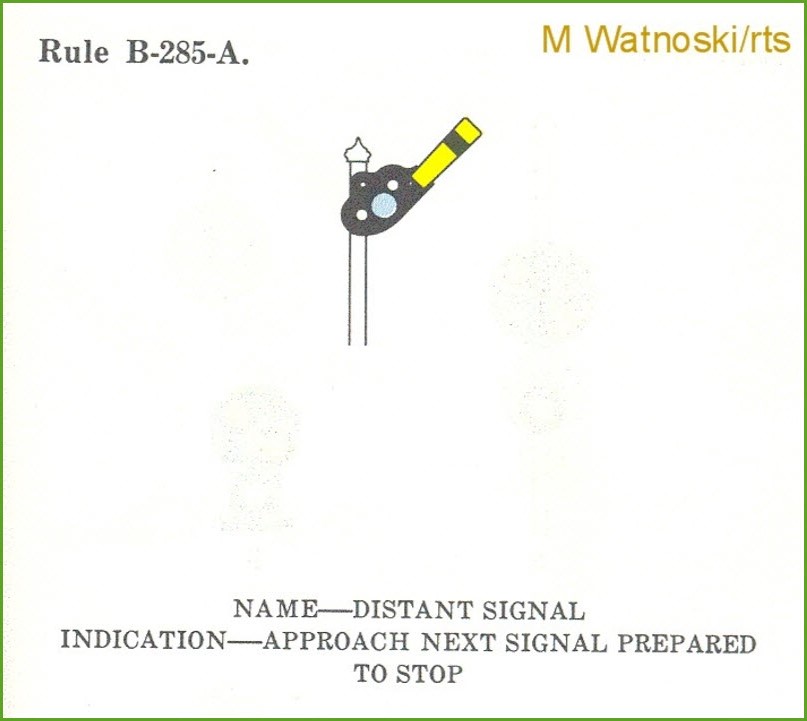

Rule B-285-A - Distant Signal

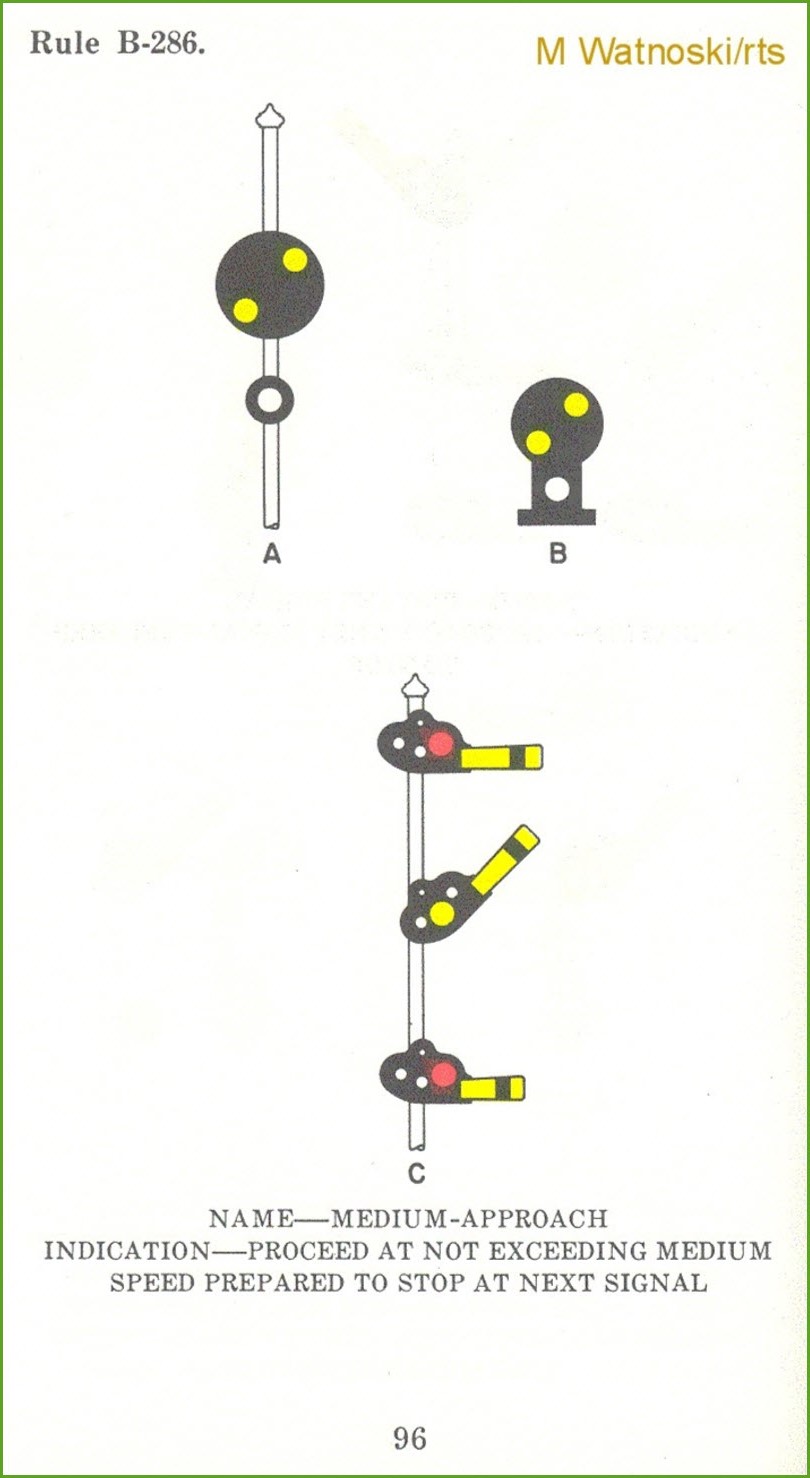

Rule B-286 - Medium Approach


Rule B-287 - Slow-Approach Slow


Rule B-288 - Slow Approach


Rule B-290 - Restricting


Rule B-291 - Stop and Proceed

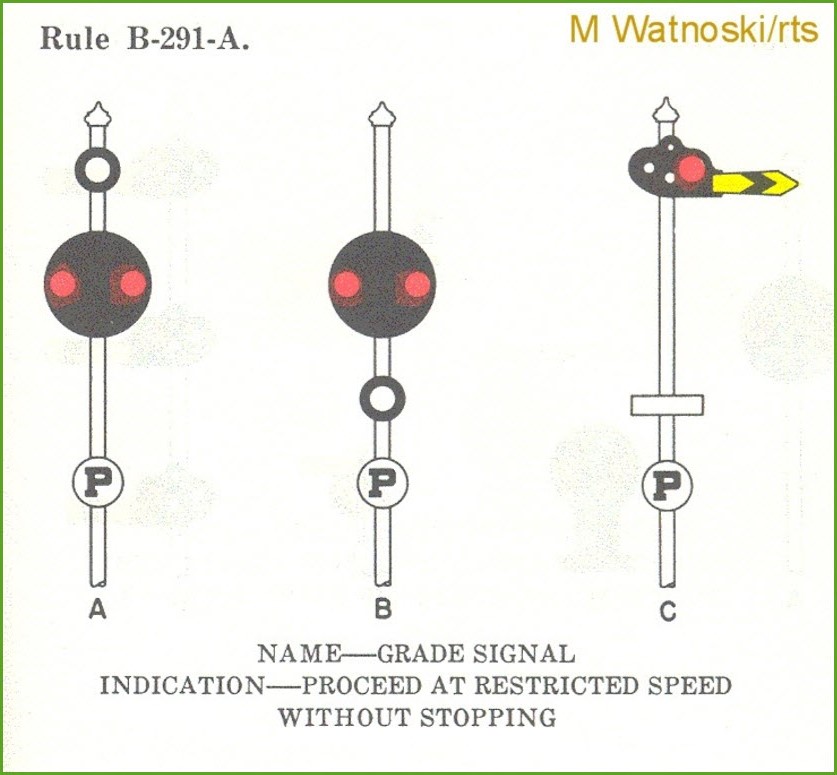

Rule B-291-A - Grade Signal (CSX did away with this one)

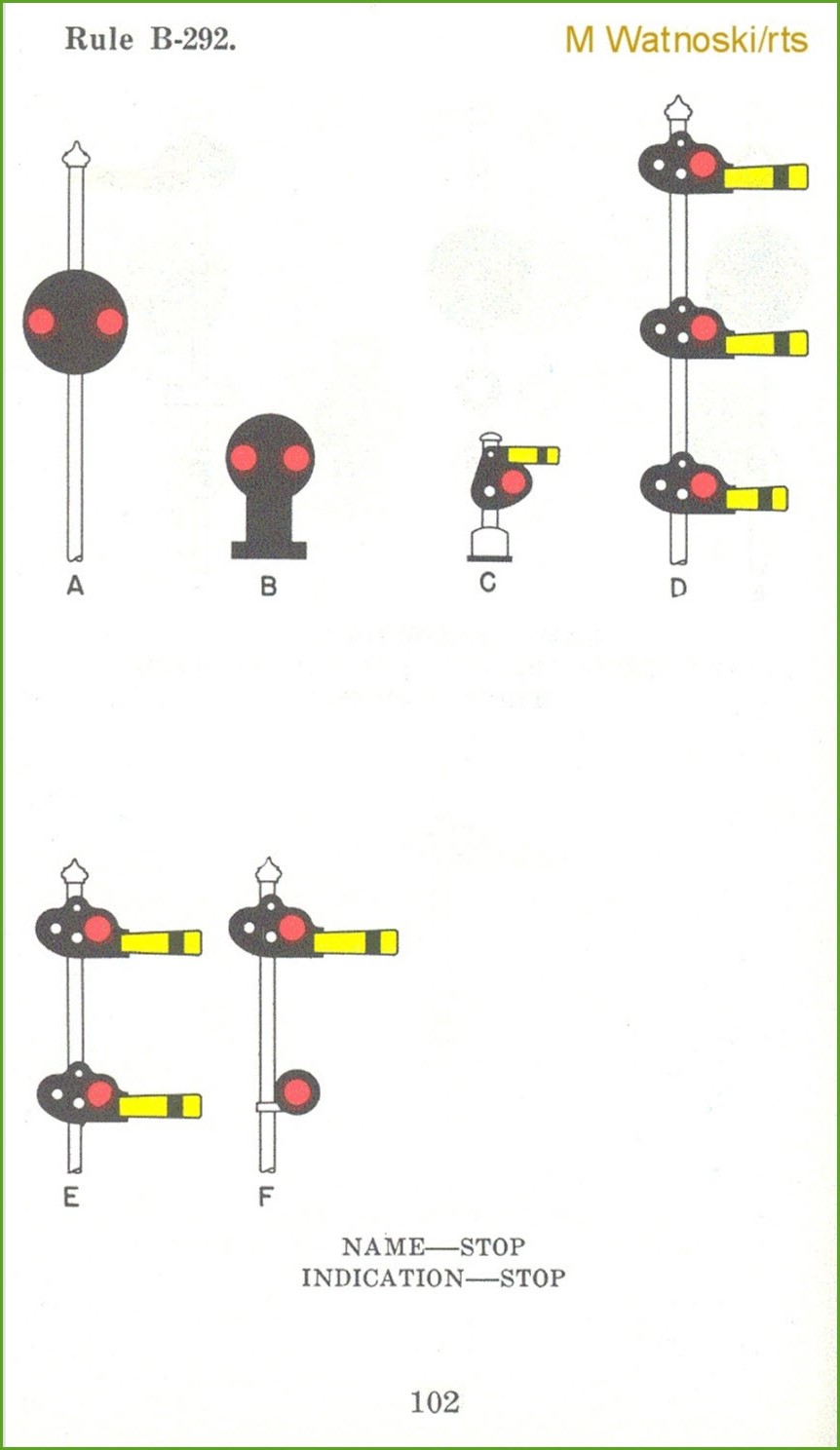

Rule B-292 - Stop
