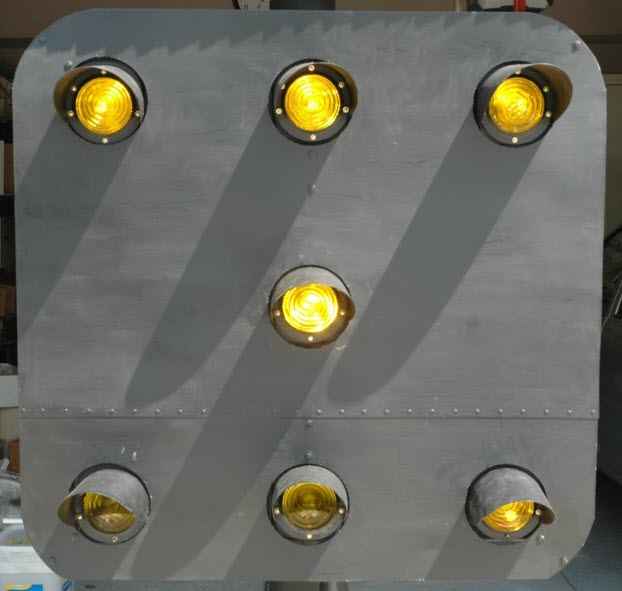

Here are a few references for the signals that used to be at the south entrance to Union Station in Chicago.  They are nicknamed "Domino" signals, for obvious reasons.

If you notice the first, slightly gray version, it shows an aspect which is not possible.  This may be because of a "screw-up" with the guy that was doing the artwork - as the signal cannot display what is shown.  It also does not show the restricting indication.

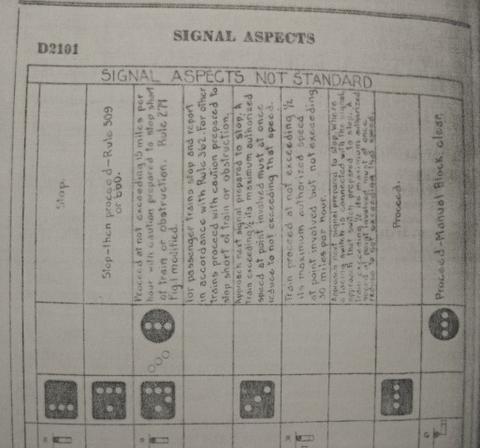

In the second set of illustrations, I am missing page 25 (and maybe page 26) showing the stop aspects.

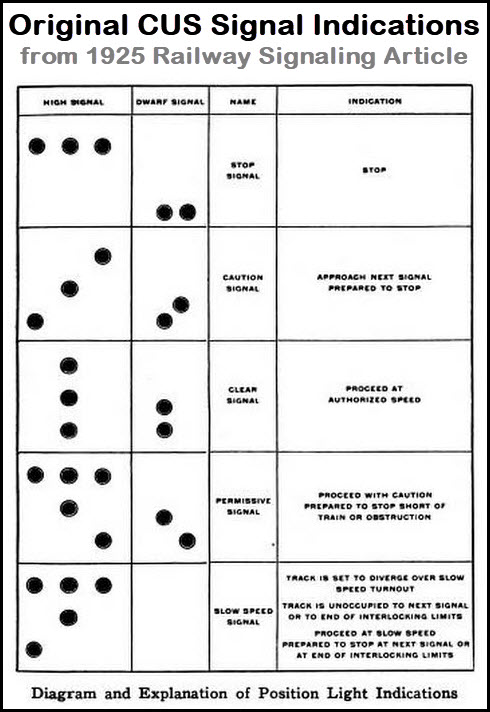

The last indication chart comes from the 1925 article that appeared in the March issue of RAILWAY SIGNALING.

My guess, is that after the original installation in the 20's, when the signals could display 5 indications, they decided to add "stop and proceed" to the mix.

According to one source I came across, these signals also appeared somewhere in New Jersey, but I have not confirmed this.

What do you think?  Think this shot was set up for the article?  :-)

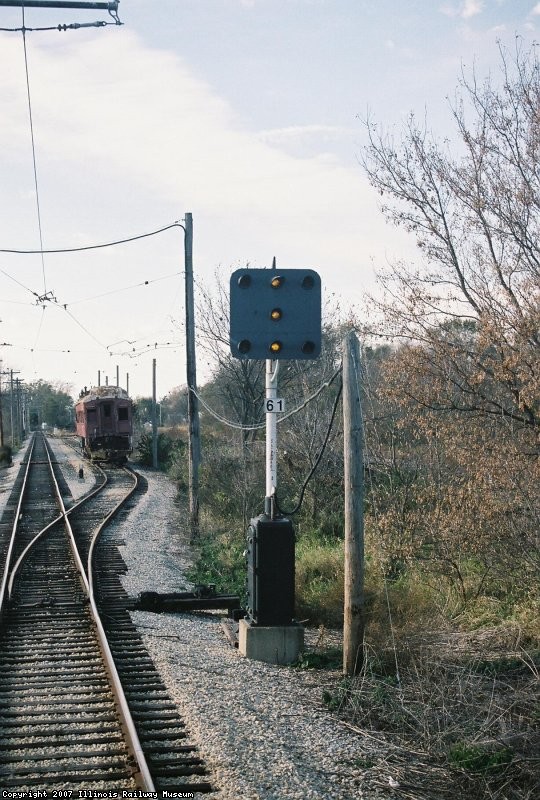

At the Illinois Railway Museum, in an untypical installation

Photograph by Tim Vermande in the mid 70's
This is the only picture I have seen of the signals in service!
A big thanks to Tim for sharing

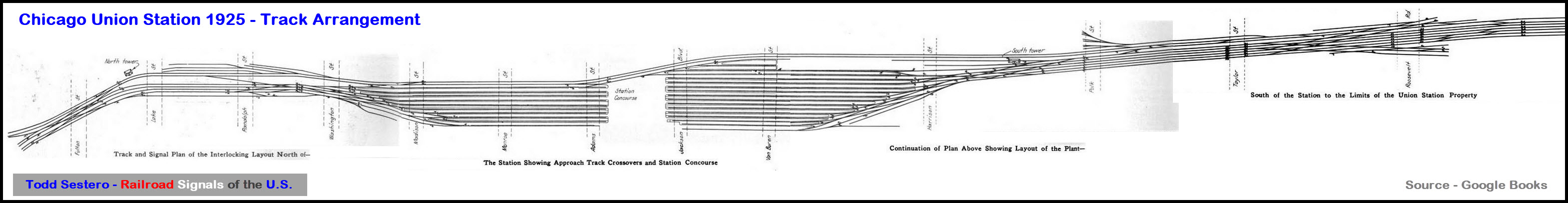

The complete CUS track plan stitched together from the article:

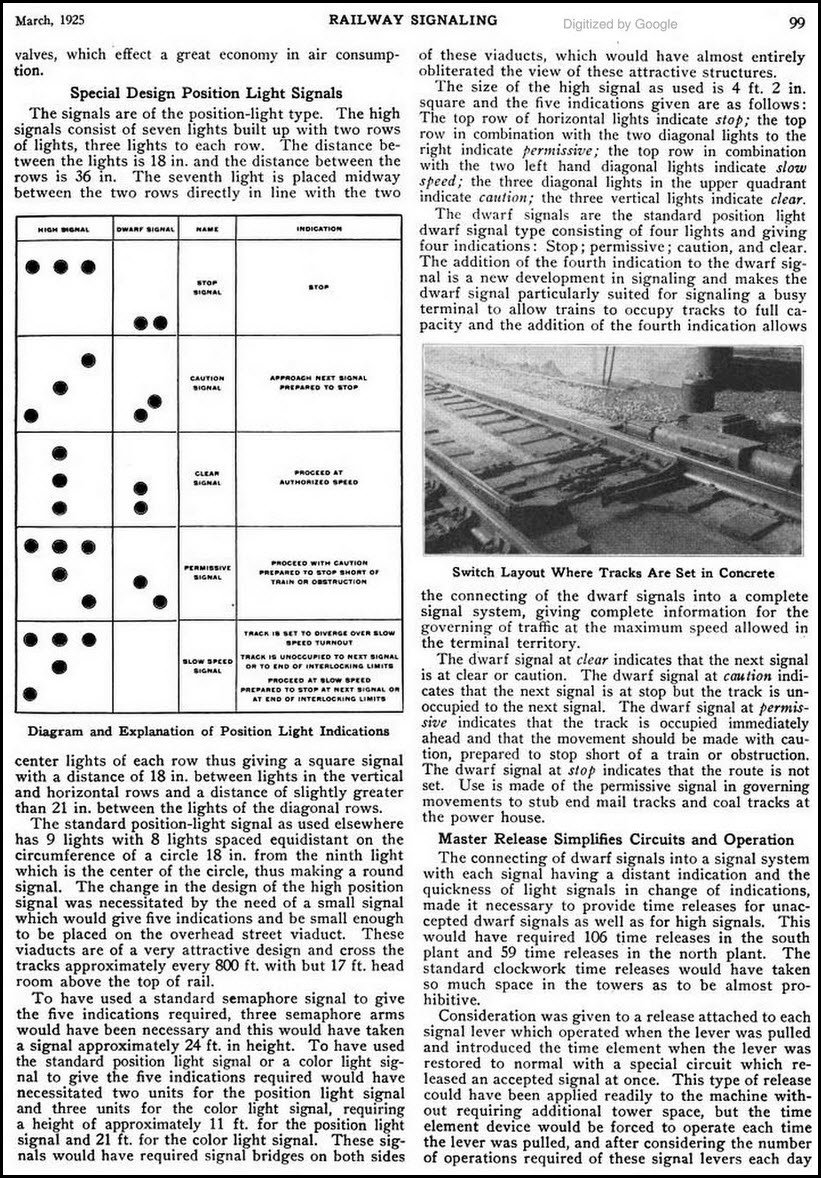

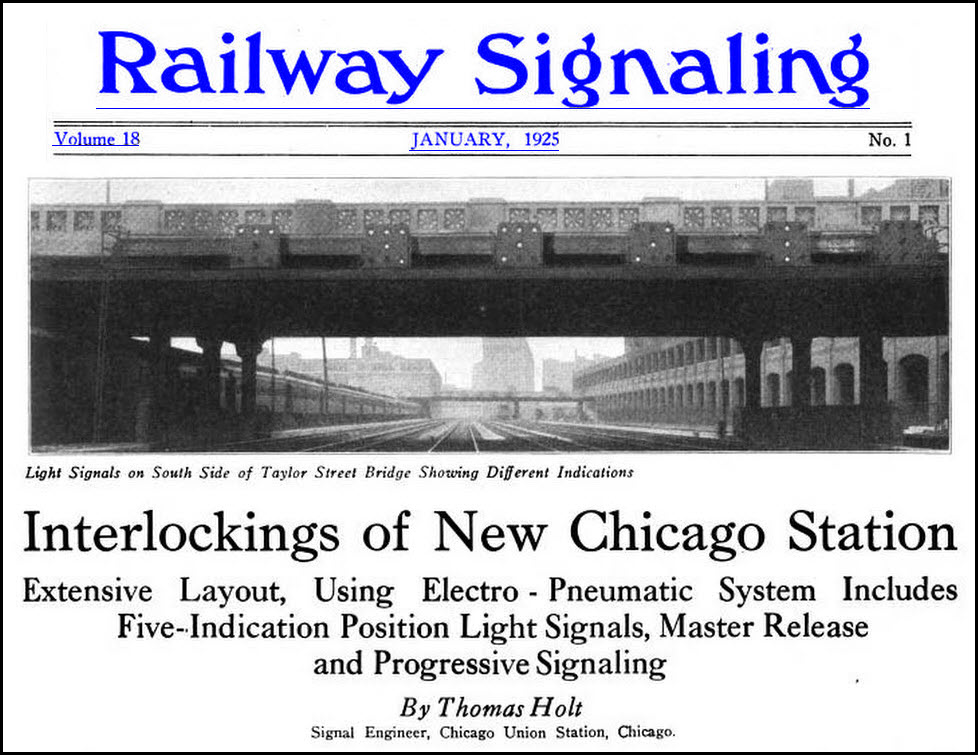

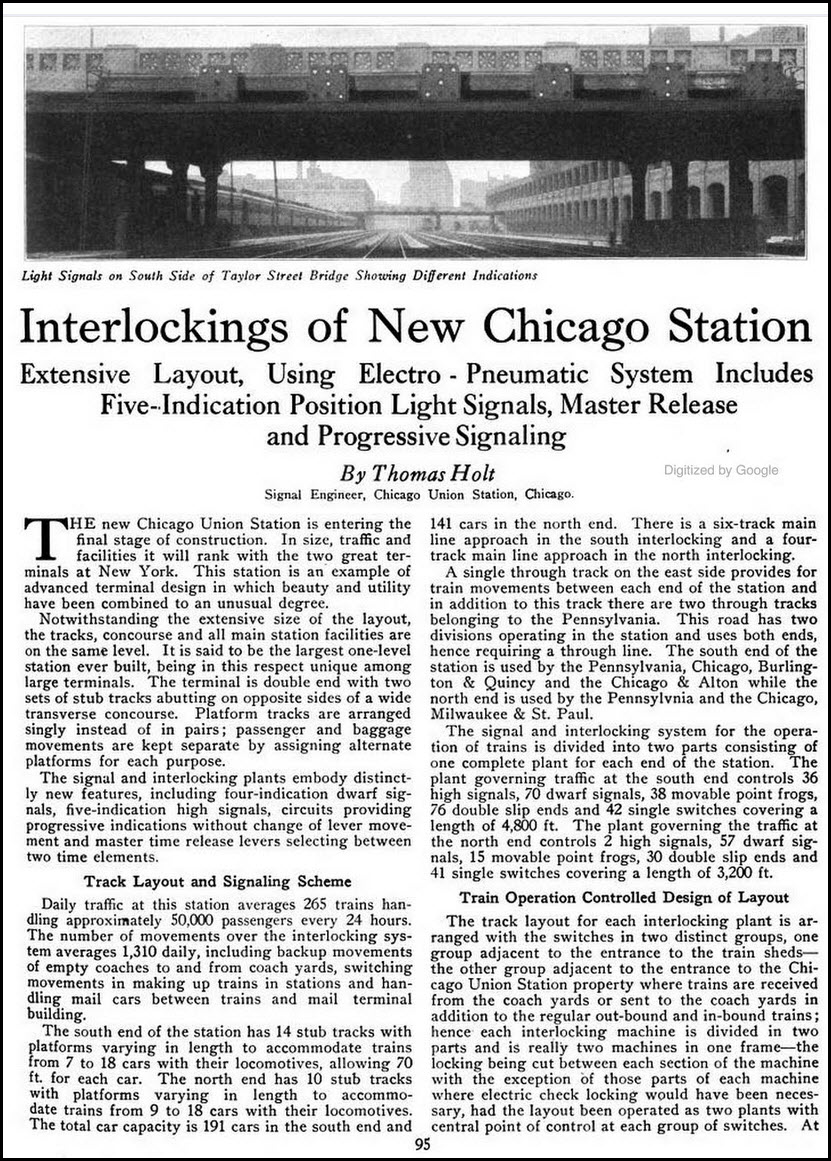

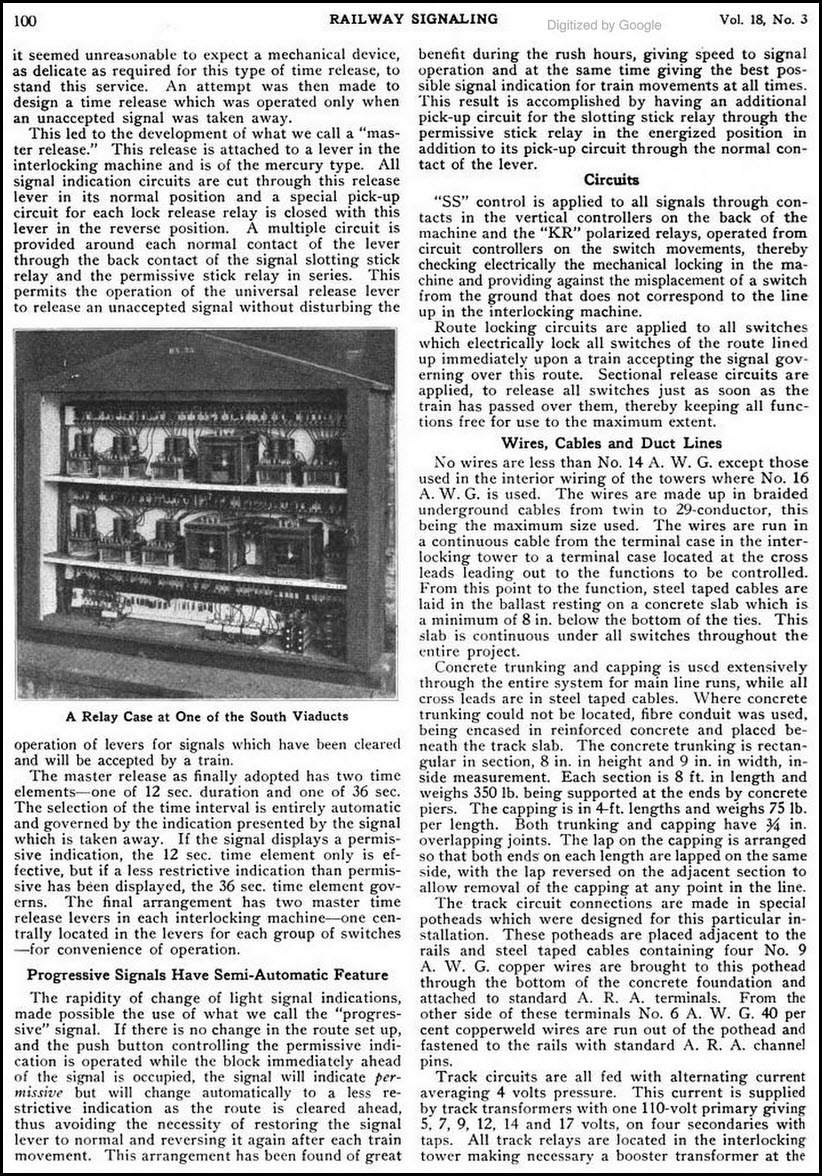

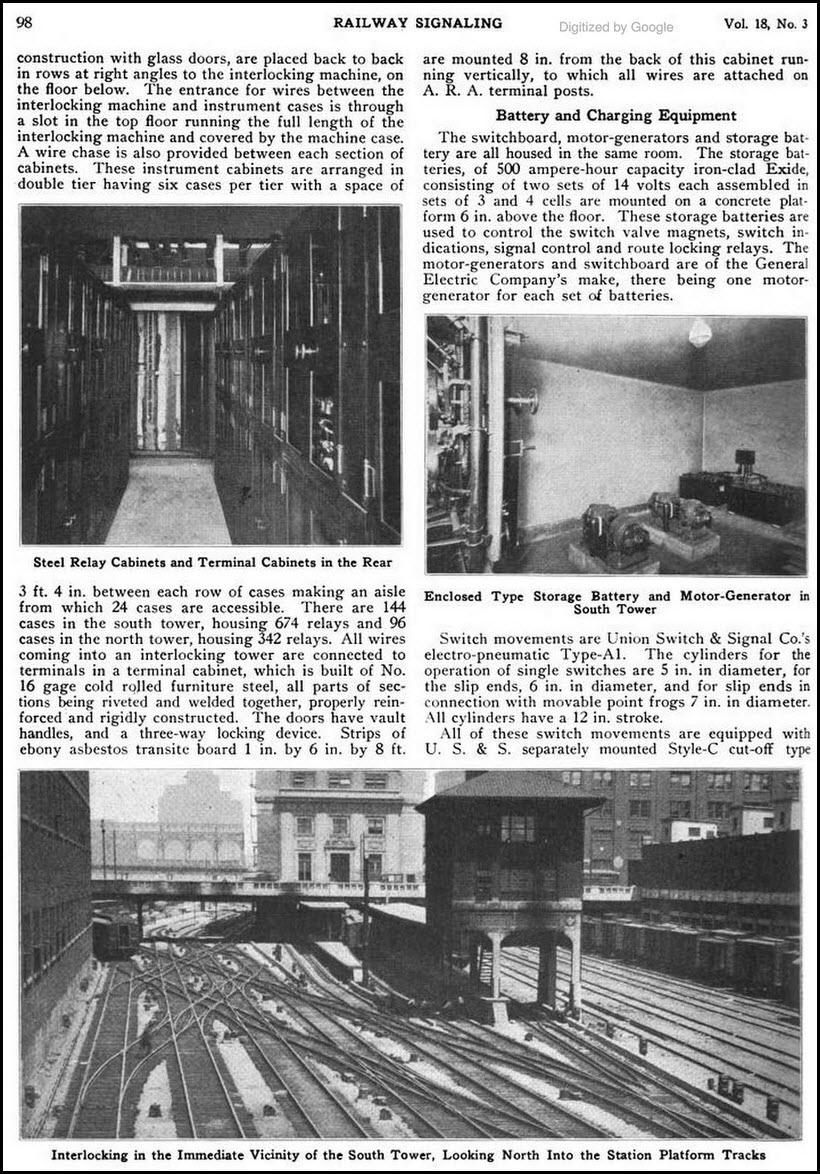

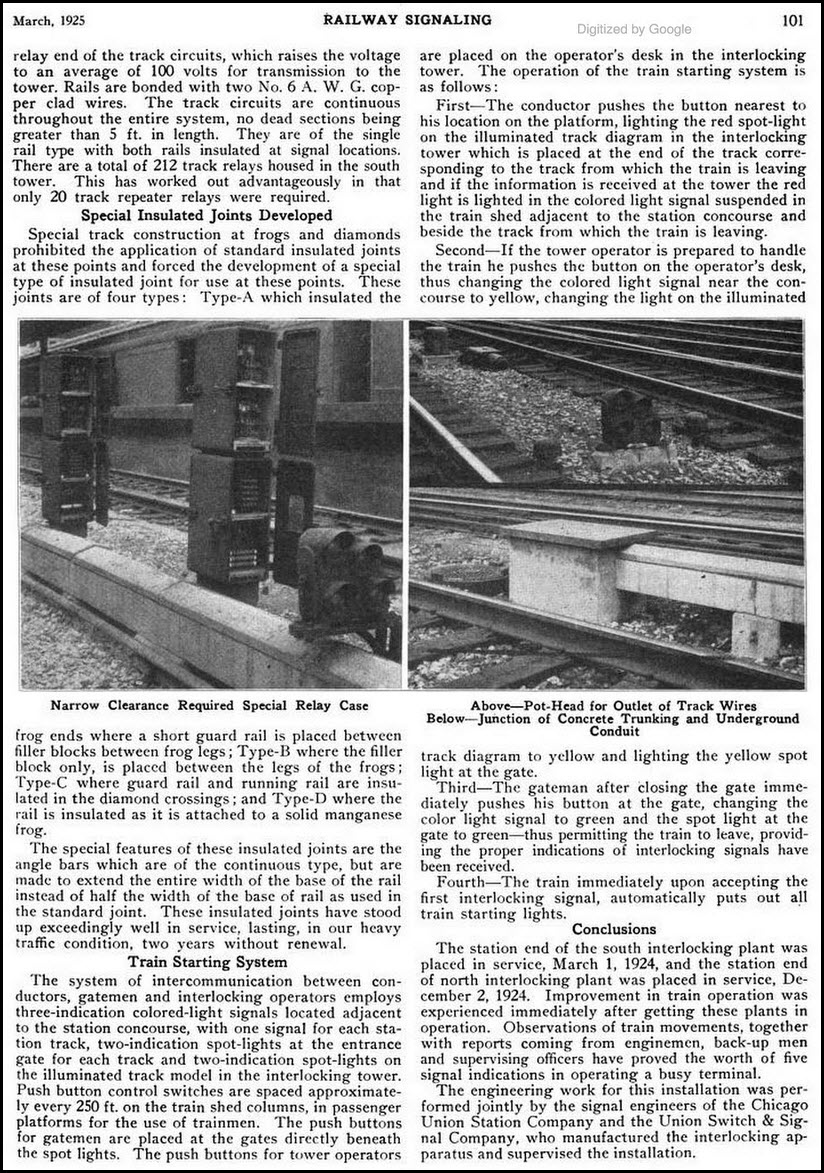

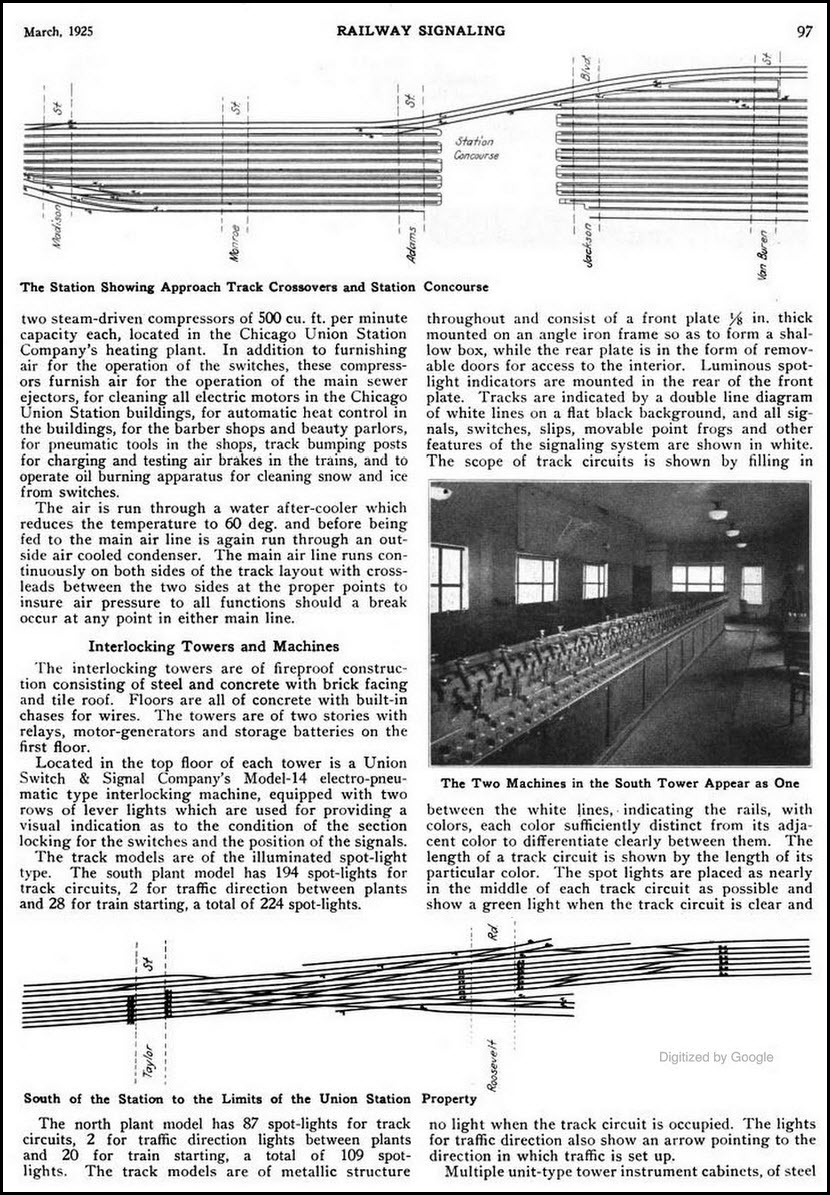

The complete Railway Signaling article:
